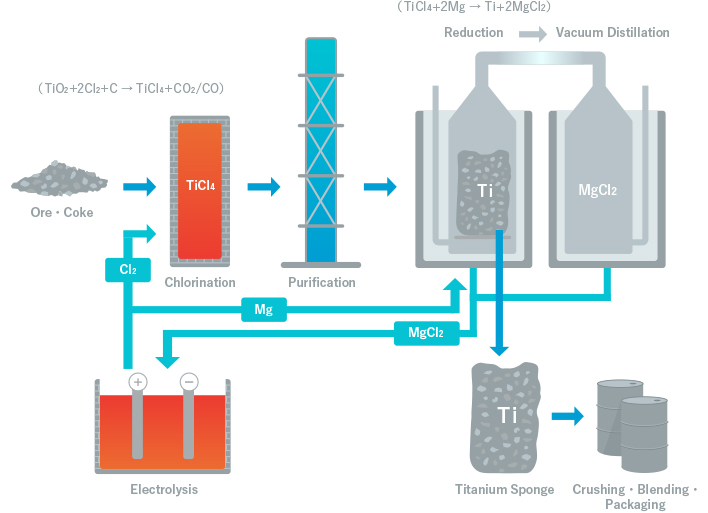

TITANIUM FLOW CHART

Chemical composition table as followings

Materials	O%	C%	H%	Fe%	Al%	V %	Ni%	Mo%	Others	Ti%
Gr.1	0.18max	0.08max	0.015max	0.20max	--	--	--	--	0.4	bal
Gr.2	0.25max	0.08max	0.015max	0.30max	--	--	--	--	0.4	bal
Gr.5	0.20max	0.05max	0.015max	0.40max	5.5-6.75	3.5-4.5	--	--	0.4	bal
Gr.7	0.25max	0.08max	0.015max	0.30max	--	--	--	--	0.4	bal
Gr.9	0.15max	0.08max	0.015max	0.25max	2.5-3.5	2.0-3.0	--	--	0.4	bal
Gr.12	0.25max	0.08max	0.015max	0.30max	--	--	0.6-0.9	0.2-0.4	0.4	bal
Gr.16	0.25max	0.08max	0.015max	0.30max	--	--	--	--	0.4	bal

SEAMLESS TITANIUM TUBE
Standard Material Specifications

GR1/GR2/GR3/GR4/GR5/GR7/GR9/GR12/GR16/GR17

ASTM B338/ASME SB338

ASTM B861/ASME SB861

O.D 5-508mm/ W.T 0.5-50mm/ Length 300-15000mm

FLANGES AND FITTINGS

ASME B16.9 / ASTM B363 / EN 1092 / ASTM B366 / MSS SP-43

Slip On Flange / welding neck flange/threaded flange (Screwed Flange) / plain flange blind flange / lap joint flange

Elbows 45 / 90 / 180 LR / SR / Concentric / Eccentric Reducers / long radius and short radius equal diameter and

reducing / Equal / Reducing Tees / Stubs / Caps

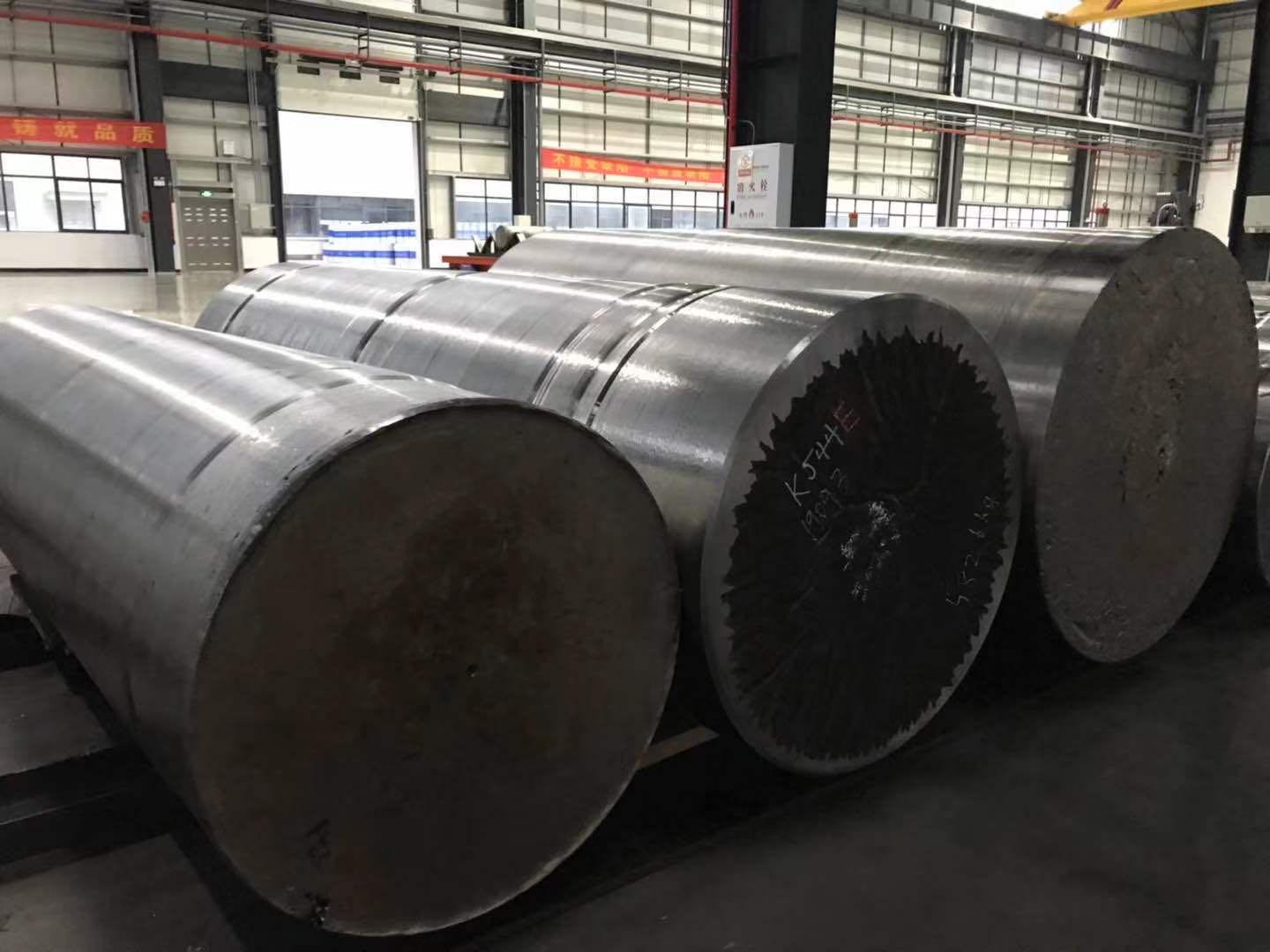

TITANIUM AND ALLOY BAR/BILLET
Standard Material Specifications
ASTMB348,AMS4928 CP-Ti , Ti-6AL-4V,Ti-6Al-4V ELI

ASTM F67,ASTM F136 Ti-5Al-2.5Sn. Ti-3Al-2. 5V,Ti-15333 Dia(3-1000)x Length ≤6000mm
Ti-38644 , Ti6Al-7Nb , Ti-662 ,Ti-6242
Ti-1023, Ti-4322, and Ti-0.2Pd

TITANIUM FORGING
Standard Material Specifications
ASTM B381,ASTM B348 CP-Ti ,Ti-6Al-4V ,Ti-0.3Mo~0.8Ni Disc H(40-700) x Dia ≤1400mm
AMS 4928,AMS4965 Ti-15333 , Ti-38644 , OD(200-1400) x ID(60-1300) xH(400-700)mm
Ti-3Al-2.5V, Ti-0.2Pd OD(400-3000) x ID(300-2900) x H(80-600)mm

TITANIUM  PLATE AND SHEET
Standard Material Specifications

ASTM B265/AMS4911/AMS4900/AMS4901/AMS4902/ASTM F136

CP-Ti,Ti-6Al-4V,Ti-6Al-4V ELL Thk(0.6-0.8) x W≤800 x L≤2000mm
Ti-3Al-2.5V. Ti-0.2Pd Thk(0.8-5.0) x W≤1000 x L≤3048mm
Ti-0.3Mo-0.8Ni Thk(5.0-8.0) x W≤2000 xL≤4000mm
Thk(0.6-8.0) x W≤2500 x L≤7000mm

APPLICATIONS

water drilling risers

casing tubing

producing risers

pumps and systems of sea water

drilling water and associated water tubing for process solutions circulation systems

liquid separators

heat exchanging equipment of various designations

high-pressure vessels

heat Ex-changer/Condenser/Reactor

high-strength flexible braces for
platform fastening

oil & gas chemical and mining industry
