Pipe & Tube

ERW Welded Titanium Tubes

Dimensions: OD16-3000MM x WT0.35-1.5MM x Length13000mm

Standard: ASTM B862

Cold rolled SMLS Titanium Tubes

Dimensions: OD16-114.3MM x WT1.5-6.02MM x Length13000mm

Standard: ASTM B861

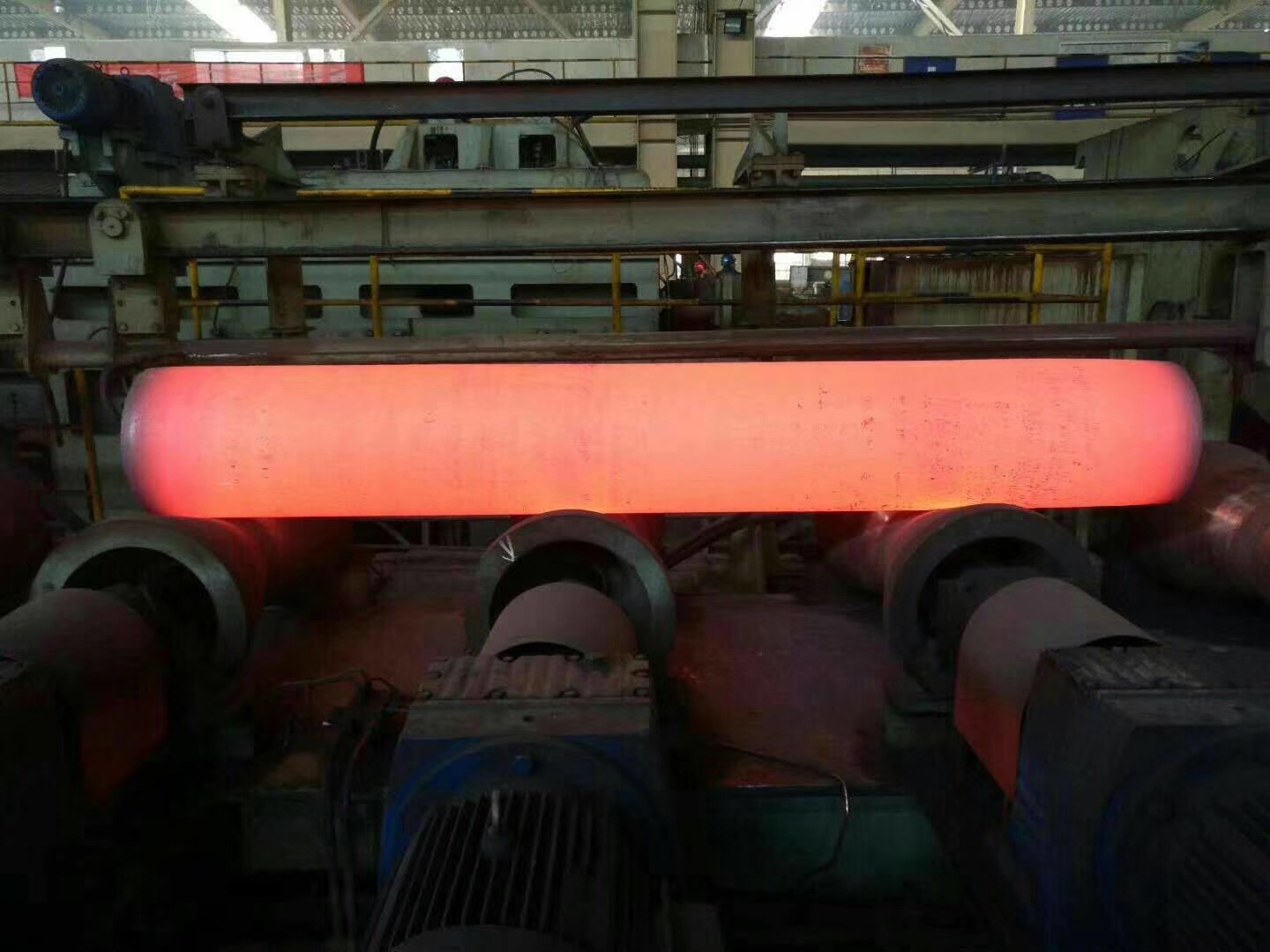

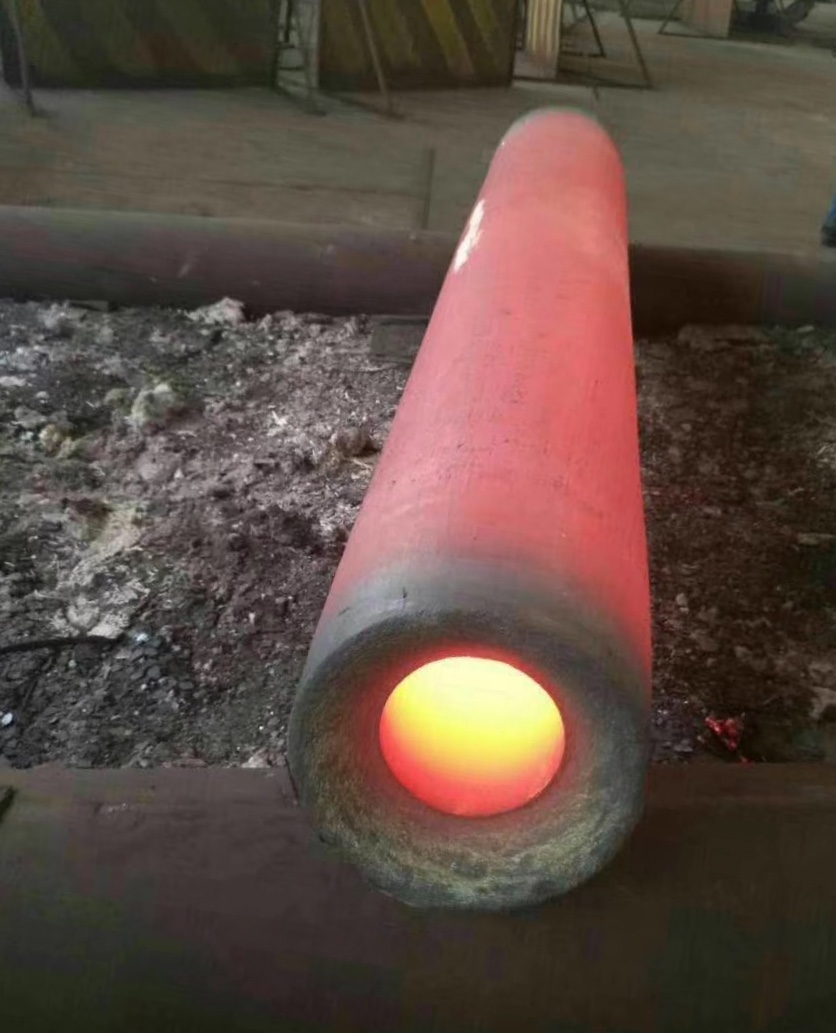

Forged Titanium Pipes

Dimensions: OD323.9-800MM x WT30-60MM x Length6000mm

Standard: ASTM B381

Inspection Items ( QAP):

1.Chemical analysis and tensile test

2.Flaring test,flattening test and reverse flattening test

3.ET,UT and pneumatic test on random

4.Visual inspection of the surface condition on random

5.Dimensional and marking check on random

6.EN10204-3.1 / EN10204-3.2 By TUV,BVQI

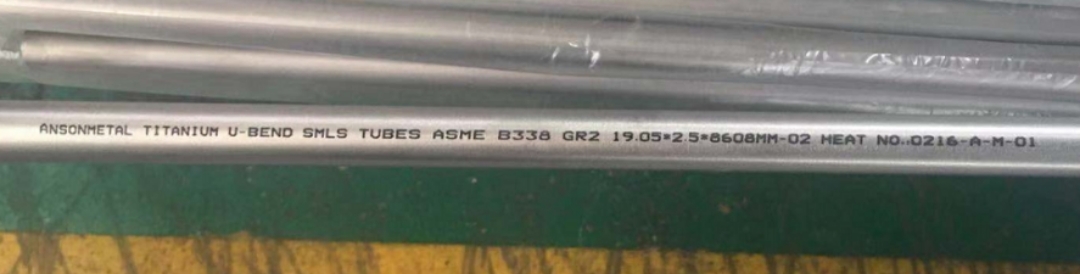

Cold Rolled Seamless Titanium Tubes

Specifications: OD12.7-219MM x WT0.3-12MM x Length ≤ 18000MM

Standard: ASTM / ASME SB-338-2017

OCTG Products that Perform in the Extreme

Production Tubing

Made to order ASAP

INCOLOY alloy 028

INCOLOY alloy 825

INCONEL alloy G-3

INCONEL alloy C-276

INCOLOY alloy 945X

Mechanical Tubing

Made to order ASAP

INCOLOY alloy 028

INCOLOY alloy 825

INCONEL alloy G-3

INCOLOY alloy 945/945X

INCONEL alloy 718

INCOLOY alloy 925

INCOLOY alloy 725

ProductGrades

Duplex 22Cr (UNS S31803) 110 & 125

Super Duplex 25Cr (UNS S32750) 110 & 125

INCOLOY Alloy 28 (UNS N08028) 110 & 125

INCOLOY Alloy 825 (UNS N08825) 110 & 125

INCONEL Alloy G-3 (UNS N06985) 110 & 125

Hastelloy C-276 (UNS N10276) 110, 125 & 140

SIZE & WEIGHT

Diameter:

2-3/8" through 13-3/8"

Weights:

Standard API sizes and weights

Lengths:

Range 2 (25ft-34ft)

Range 3 (34ft-45ft)

Inspection Items ( QAP):

1.Chemical analysis and tensile test

2.Flaring test,flattening test and reverse flattening test

3.Eddy Current Test

4.Ultrasonic Test

5.Hydrostatic test

6.Visual inspection of the surface condition on random

7.Dimensional and marking check on random

8.EN10204-3.1 / EN10204-3.2 By TUV NORD
